产品系列-XZC311

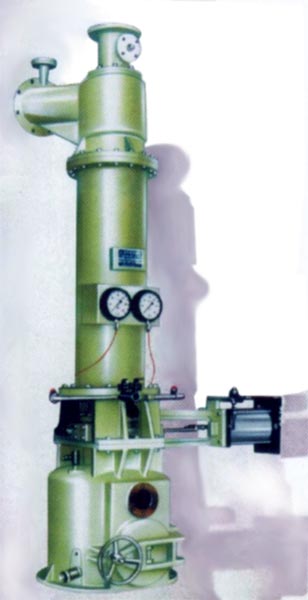

高浓除渣器

本机是消化吸收国外先进技术研制的新一代纸浆净化设备、主要用于浆料制备系统中除去铁器、书钉、沙粒和玻璃等比重较大的杂质。
本机采用双锥体结构,可对杂质造行有效的二次分离,纤维的流失极少.适用纸浆浓度为0.1-5%,可连续操作.间隙排渣.具有除渣效率高、性能稳定、操作简单、维护量小、占地小,运行安全可靠等特点。

HIGH CONSISTENCT CLEANER--This equipment is a high consistency cleaner of new era with absorb advanced technology abroad,mainly used in pulp making system to remove heavy weigh impurity such as iron component, sand and glass.Adoped bi-cone body structure this device can be separated fibre and impurity efficiently two times.The fibre in residue is nearly none. It is suitable for process pulp with 0.1-5% consistency It can be continuously working and removing impurity with batch process. It features high efficiency, reliablePerformance. simple operation, easy maintenance and less floor space.




主要技术参数 Main Specification

适用纸浆浓度 Pulp Cinsistency

%
<5

进浆口直径 Inlet Dia

mm
200

出浆口直径 Outlet Dia

mm
160
粗选流量 Rough Separate Capacity
m3/h
80-140
粗选压差 Rough Separate Δp
MPa
0.03-0.1
精选流量 Refined Separate Capacity
m3/h
160-230
精选压差 Refined Separate Δp
MPa
0.15-0.3

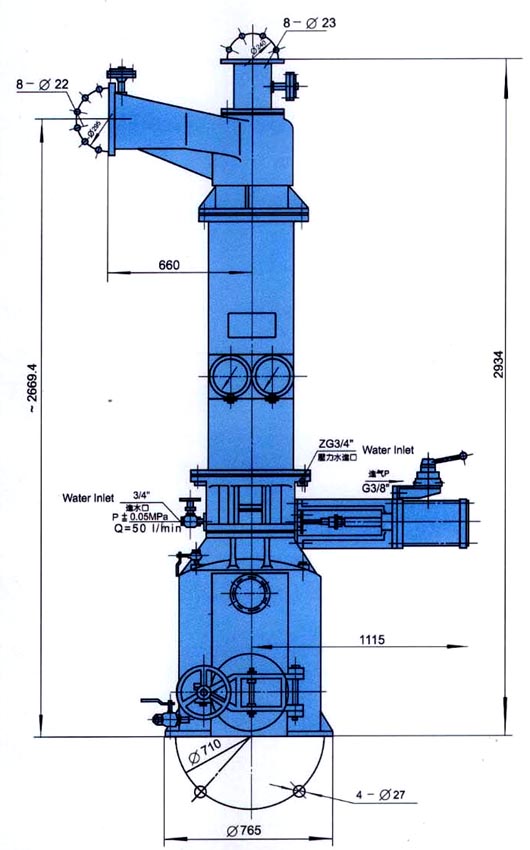

外型尺寸(长×宽×高) Dim(L×W×H)
mm
1500×1045×2934
包装箱尺寸(长×宽×高) Dim(L×W×H)
mm
3360×1402×1816
毛重 Gross Weight
kg
1800
