| 产品系列-XZC4 |
 |

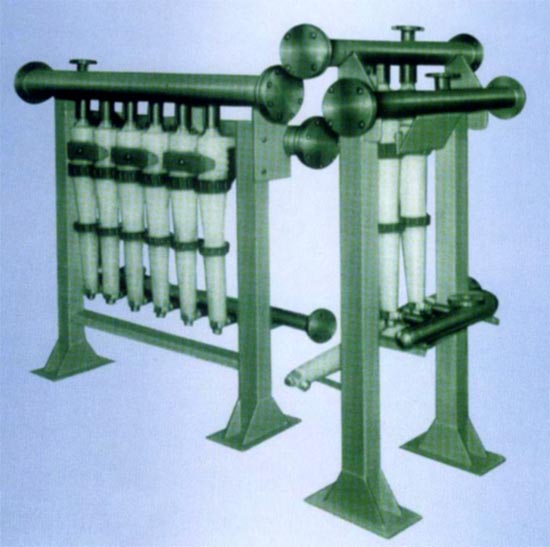

| 高效除渣器 |
| |
| 本高效除渣器是消化吸收国内外先进技木研制的新一代除渣优书。它主要用于各种浆料上纸机前的净化，由于其特殊的结构，因此所需的动力小，纤维的流失量少，除渣效果好。本机除渣筒体采用非金属材料，具有重量轻，占地面积小
维修方便等特点。为提高浆的得率，除渣器一般采用多段排列，每一段除渣器的数量，根据使用单位的产量来定。 |
|
| |
| HIGH EFFICIENCY
CLEANER-This equipment is a high efficiency cleaner
of new ear with absorb advanced technology abroad,mainly
used to clean stock before delivering to the headbox.With
specific structure.It features lower power comsuption
less fibre loss,good cleaning results,the cleaning body
is made up of nonmetal,it also features light weight.less
floor space,easy maintenance.To raise the rate of pulp
obtaining,it usually arranges multistage.The quality of
each stage will be according to the technique requirement. |
| |
|
|
主要技术参数 Main Specification
| 每个除渣器的生产能力 Each Cleaner Capacity |
l/min |
-400 |
| 最大良浆压力 Accepted Stock Pressure |
MPa |
<0.15 |
| 进浆浓度 Inflow Cinsistency |
% |
0.3-0.8 |
| 进浆压力 Inflow Pressure |
MPa |
0.2-0.3 |
| 进浆口直径 Inlet Dia |
mm |
200 |
出浆口直径 Outlet Dia |
mm |
156 |
|
|
