产品系列-XZG21

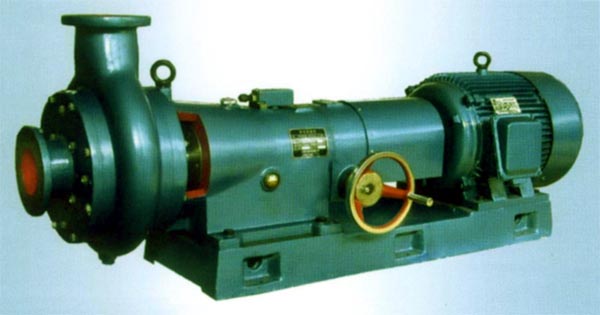

纤维疏磨机

本机为疏解浆料设备.具有结构紧凑、设备重量轻、占地面积小、生产效率高、节电效果显著、工艺适应性强、操作灵活、维修方便等优点.适用于经过净化处理(重物、金属物处理)的多种浆料(木、草、废纸等)的疏解和匀整.浆料从进口到出口至少要经过8个疏解区域.流道呈S型。特别对纤维的帚化.处理浆点、提高成纸质量起了关键作用。用途十分广泛,是目前国内外造纸制奖的理想配套设备.在一般情况下与大度精浆机及双圆盘磨浆机串联使用.也可按制浆工艺要求单一或多一串联使用。


DEFIBRIZER--This is a equipment for defibration. It features compact structure,light weight,less floor space. High efficiency.conomize on electricity remarkably, great adaptability in technology, simple operation, and easy maintenance. Stock inflows from inlet to outlet at least passed defibration zones, the passage way is Stype,This makes key role to defiber and treat stock points and thus improves the paper quality. It is an ideal equipment for pulp-making mill at home and abroad.GeneralIy.it is arragned in series with claflin refiner and doubIe disc refiner.

According to the technology requirement a series
of instalIations may be used.







主要技术参数 Main Specification

通过量 Capacity

t/d
15-60
进浆浓度 Inflow Cinsistency
%
3-5
进浆压力 Inflow Pressure
MPa
0.1-0.2

进浆口直径 Inlet Dia

mm
125

出浆口直径 Outlet Dia

mm
125
配套电动机 Motor
kW
37(Y2258-4)
外型尺寸(长×宽×高) Dim(L×W×H)
mm
2034×578×755
重量(不含电动机) Weight(Excluding Motor)
kg
790
包装箱尺寸(长×宽×高) Dim(L×W×H)
mm
3100×1010×1165
毛重 Gross Weight
kg
1030
