产品系列-XZJ21,31

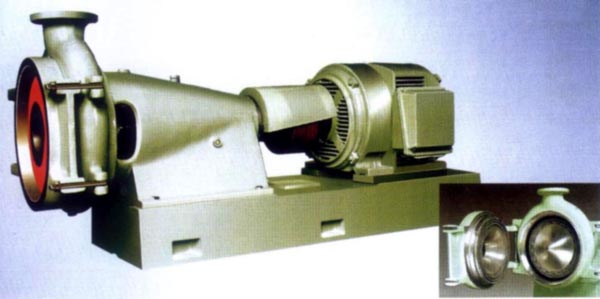

XZJ21,XZJ31 HIGH FREQ. DEFLAKER is absorbed the optimum deflaker device in the world
by our firms .By the higth rotating speed. the centrifugal force makes the
pulp through many teeth between the stationary an rotaing teeth again and
agaln. It results of fiber defibration. As there is somegap between the station
and rotationplates, the fiber only process defibration without harm, it is specialIy used for defibraze short fiber pulp board or secondary fiber.It is widely used in wate paper process.
After this defibration.the SR is basically not changed.The degree of
hydration wilI increase.the wet weight
will decrease.Therefore it will helpful increase the speed of paper-making of
the machine.


This device can obviously decrease pulp point and defibraze the fiber with
high wet strenth.It can be arranged series with two or three sets .It aIso
can be combined with other refiner.


This device features compact structure. light weight less floor space.high efflciency,easy operation.great
adaptability fn technique.Befofe pulp income the device.It is necessary that
the pulp must process purification
preventing impurity into the device.



XZJ21,XZJ31高频疏解机是由我厂引进吸收消化而成最新、最佳疏解设备,运用高速旋转生产的力与众多齿形当浆料通过动盘和静盘间反复多次撞击,而使纤维分散疏解。由于动静盘间有适当的间隙,纤维仅作单纯的分散,不损伤纤维,作为短纤维浆板及二次纤维的疏解尤为有利。被广泛的应用于废纸流程中。成纸物理性能明显提高。在打浆扣解度基本不变(但浆料分散后将达到原纸浆的扣解度值)水化度增加,湿重下降,有利于纸机车速的提高。
本机不但能明显减少浆点.而且有疏解浆料中所含湿强度高的特殊纤维.按照原料及成品浆质量要求的不同,本机可单独使用可两一或三一串联使用。可与其他打浆设备的精浆机、盘磨等组合使用。
本机结构紧凑,设备重量轻占地面积小生产效率高,操作灵活维修方便,工艺适应性强,但浆料送入该设备前浆料必须经过净化处理防止杂物带入损坏设备。




主要技术参数 Main Specification

项目 ITEM

UNIT
XZJ21
XZJ31
最大产量 Capacity
T/D
50(65) 100(120)
通过量 Output
L/min
250-1000 500-2000
浓度 Cinsistency
%
3-6 3-6
电机功率 Power
kW
75 160
转速 Speed
r/min
3000 1500

进浆口直径 Inlet Dia

mm
100 150

出浆口直径 Outlet Dia

mm
100 150
进浆压力 Inflow Pressure
MPa
0.15-0.2 0.15-0.2
水封压力>出浆压力 Water Sealing Pressure>Outflow Pressure
MPa
0.05 0.05

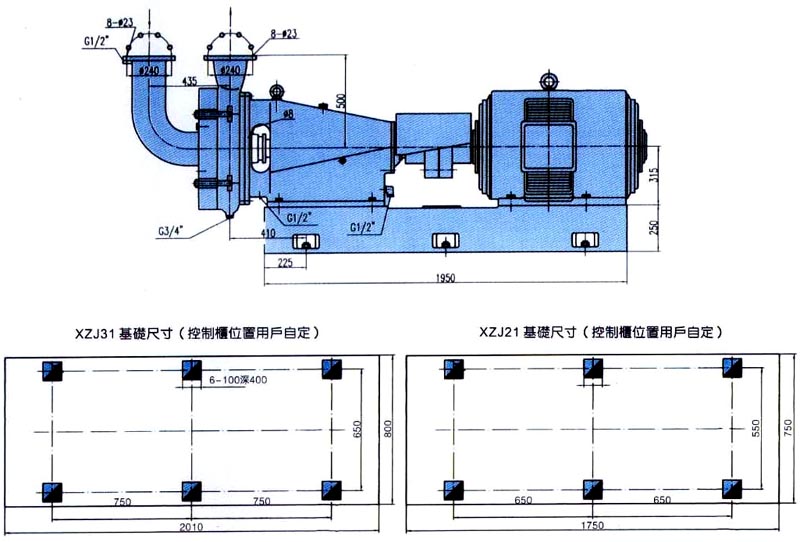

外型尺寸(长×宽×高) Dim(L×W×H)
mm
  2820×912×1065
包装箱尺寸(长×宽×高) Dim(L×W×H)
mm
  3150×1300×1470
毛重 Gross Weight
kg
  2900
