产品系列-XZZ21

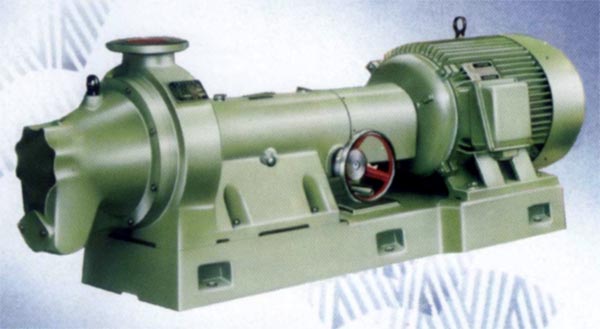

大锥度精浆机

本机为精浆设备、具有结构紧凑、占地少.效率高、节电、适用性强、操作灵活。维修方便等特点.通过调节切割区间隙.可调整对浆料的切割作用.本机在进浆口特别设置了重杂分离腔.以保证打浆机运转可靠安全。是国内外常用的较为理想的连续打浆设备.可单台使用或多台串联使用.也可与双圆盘磨浆机等设备串联使用。

Claflin Refiner is a large conicity refiner mainly used to refining. It features compact structure, less floor space. high efficiency,low electrical consumption , simple operation. easy maintenance. Adjusting the cutting zone gap.the cutting pulp results can be regulated. Separating heavy impurity cavity is specially arranged for running smoothly and safely. It ls an ideal continuously running refiner It can be used single or multi series. lt is generally arranged in series wlth double disc refiner.




主要技术参数 Main Specification

公称生产能力 Capacity

t/d
5-45

进浆口直径 Inlet Dia

mm
125

出浆口直径 Outlet Dia

mm
125
进浆浓度 Inflow Consistency
%
2-5
进浆压力 Inflow Pressure
MPa
0.1-0.2
刀辊锥度 Cutting Roll Taper
-
45°
刀辊规格(大端直径×长度)Cutting Roll gauge(Big Dia×Lenth)
mm
Ф350×230
刀辊转速 Cutting Roll Speed
r/min
1480
电机功率 Motor
kW
75(Y280S-4)
外型尺寸(长×宽×高) Dim(L×W×H)
mm
2410×715×810
重量(不包括减压起动箱)Weight (Excluding Electric Box)
kg
1700
包装箱尺寸(长×宽×高) Dim(L×W×H)
mm
3260×1260×1350
毛重 Gross Weight
kg
2213
