| 产品系列-ZBJ11J , ZBJ12J |
 |
| 衬胶浆泵 |
| |
| 本浆泵泵衬有防腐蚀橡胶，具有优良的耐酸碱性，是制浆造纸工业．纺织化纤行业必不可少的设备．亦可应用于其它有腐蚀性．含有短纤维浆料的输送． |
|
| |

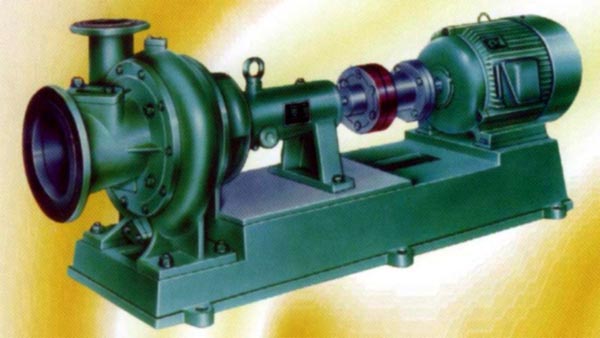

| RUBBER LINED
PULP PUMP-Lined with high corroston-resistant rubber.
lt is widely used in paper making mill and chemical fibre
plaot. It is also used for pumping contained corrosive
liquid,short fibre pulp liquid.It features simple Structure.
easy maintenance, smooth running and large capacity. |
|
 |
| |
点击看放大图
|
| |
|
|
主要技术参数 Main Specification
项目 Item |
ZBJ11J |
ZBJ12J |
| 扬程 Head |
m |
20 |
22 |
| 输浆量 Capacity |
m3/h |
108 |
192 |
进浆口直径 Inlet Dia
|
mm |
200 |
250 |
出浆口直径 Outlet Dia
|
mm |
100 |
150 |
| 转速 Speed |
r/min |
1460 |
1470 |
| 进浆浓度 Inflow Cinsistency |
% |
5 |
5 |
| 外型尺寸(长×宽×高) Dim(L×W×H) |
mm |
1776x580x875 |
2006x740x995 |
| 重量 Weight |
kg |
750 |
835 |
| 包装箱尺寸(长×宽×高) Packing Box(L×W×H) |
mm |
2120x810x930 |
2380x910x1040 |
| 毛重 Gross Weight |
kg |
781 |
1000 |
|
|
