产品系列-ZBK11

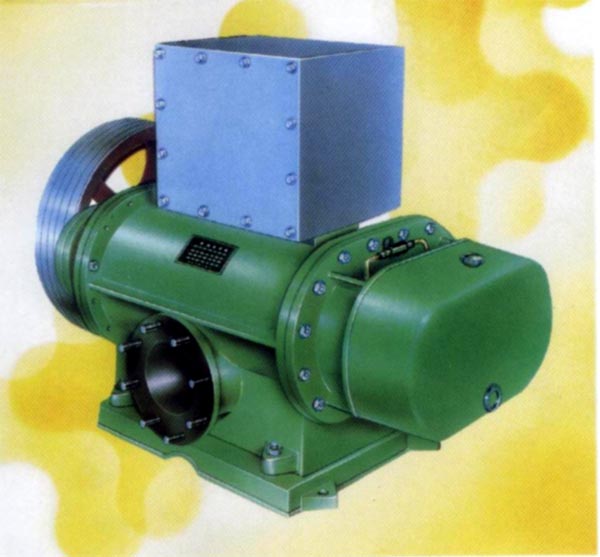

罗茨真空泵

本泵属直接排大气粗真空泵．适用于各类中、小型造纸机的真空脱水（如网部与压榨部的吸水箱、真空伏辊、真空吸移辊、真空压榨等）及抽吸含水、气体的其他设备。电力消耗比老式的水环式真空泵有明显节约，并有转速平稳、噪音低等优点。

ROOT VACCUM PUMP-It is a rongh roots vaccum pump, mainly used in suction dewatering Of medium or small sized paper machines (such as suction box, suction couch roll. transfer roll etc). It is also used in drawing water and gas at the other area.lt's electrical consmption ls significantly lower than that of a water ring pump. The pump runs smoothly and has low noise level.

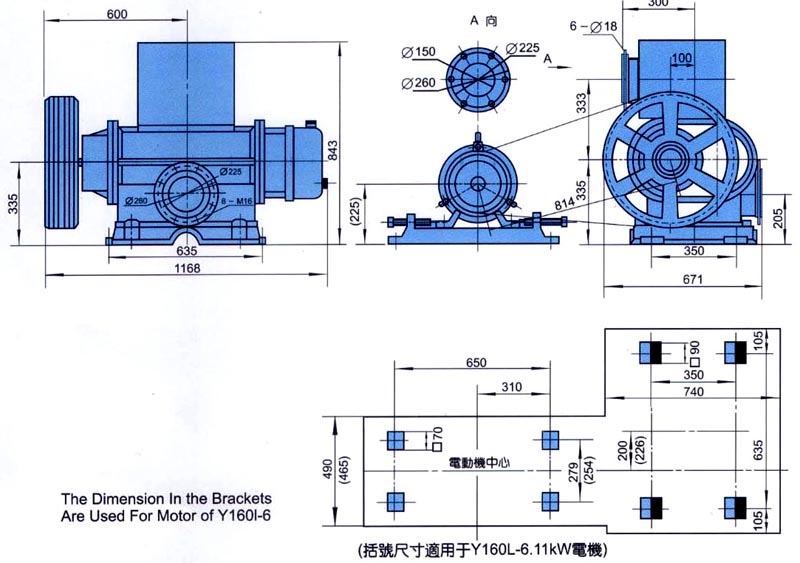

点击看放大图


主要技术参数 Main Specification

进口直径 Inlet Dia
mm
 150

出口直径 Outlet Dia
mm
 150
中心高(含底座) Ceter Height(Include Base)
mm
 335
最大抽气速率 Max Pumping Capacity
m3/min
 7.0
极限真空 Value of Ultimate Vaccum
MPa
 >0.090

转速 Speed
r/min
 350

电动机（任选一种） Motor(Option)
kW
 15Y180L-6 970r/min 11Y160L-6 960r/min
外型尺寸(长×宽×高) Dim(L×W×H)
mm

1170×710×843
重量（包括电动机）Weight(Include Motor)
kg
 ~1000
包装箱尺寸(长×宽×高) Dim(L×W×H)
mm
 2000×890×1250
毛重 Gross Weight
kg
 1187
