| 产品系列-成套造纸机械
Serials of Suit Paper Machine |
上海佩普迈讯造纸机械有限公司，是专业研制生产造纸机械及制浆设备的重点企业。优秀的团队和极富经验的专业人才，积累了近40年的纸机生产经验，无论小型纸机，还是中型中速纸机，我们在技术和质量上都有独到之处，产品在行业中享有较高声誉。
企业技术力量雄厚、设备齐全，生产流程及产品质量有完善的质保运营体系和检控体系，以确保为广大客户提供的造纸设备可靠、高效。
您的成功，永远是本企业不懈追求和创新发展得动力。愿与您得合作，互利共进！
|
| |
Shanghai Paper
Machinery Ltd. is a main specialized firms in the field of manufacturing
paper-machine and pulp-machinery device in mainland of China.
We have accumulated a team consist of famous experts, designers
and engineers who are plenty of experiences in the Lines-making
for paper machine, most of them have experiences around 40 years,
special in small, medium shape and speed models.
We are always paying great attention to the quality of our products,
not only the technical method is taking around with whole producing
circle, but the system-ship of quality-control and process-inspecting
could absolutely guarantee.
Thus, more experience, completed equipment, whole process quality
control, reliable technical inspection measure the firms high
reputation in the field and we ensure that our product whatever
paper-machine or pulp-machinery device shall be reliable and
efficiency. We always pursue your success and take it personally.
|
| |

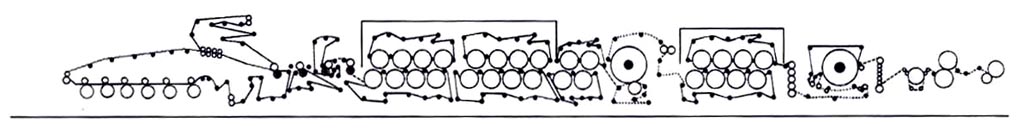

| 水平式圆筒卷纸机 |
|
|
| BZJ81
示意图 |
| |
|
|
| BZJ81H
示意图 |
|
|
|
|
型号 |
BZJ81 |
BZJ81H |
BZJ81改 |
汽罩部 |
敞 开 式 汽 罩 |
传动部 |
分部，滑差电机调速 |
- |
总轴传动160kW |
|
附属设备 |
双刀切纸机 |
五辊压光机 |
七辊压光机 |
- |
Φ900圆筒卷纸机 |
- |
|
| 2362毫米圆网三大缸造纸机 |
|

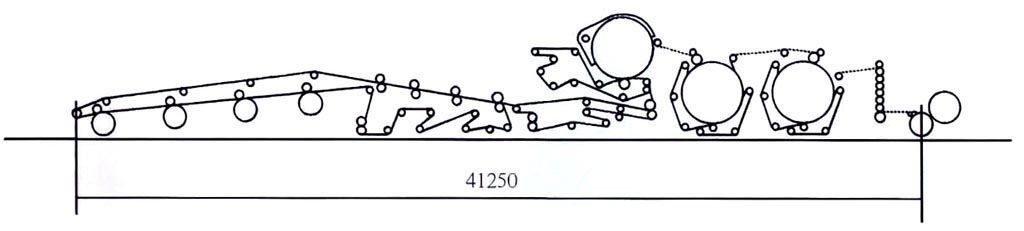

HZC5D1
示意图 |
| |
|

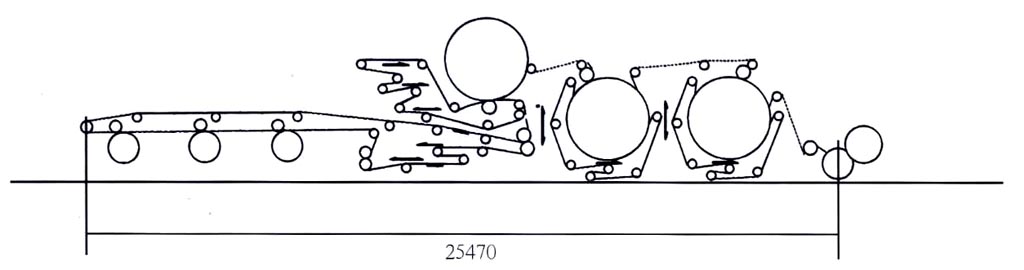

SQZ1178
示意图 |
| |
|

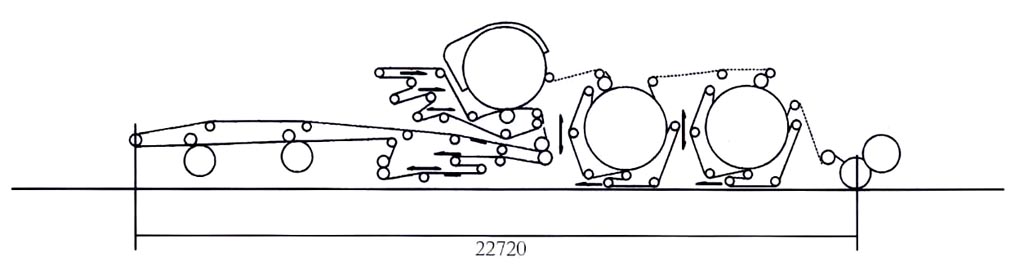

HZC5D3
示意图 |
|
|
型号
|
HZC5D1 |
HZC5D3 |
SQ1178 |
技术特征
|
净纸宽mm
|
2362 |
定量g/m2
|
200-530 |
120-180 |
工作车速m/min
|
30-90 |
轨距mm
|
3400
|
外形尺寸m
|
41.25x9.1x5.29 |
22.72x8.7x5.32 |
25.5x8.5x5.3 |
重量kg
|
192000 |
138000 |
160000 |
网部
|
圆网笼直径mm
|
Φ1250 |
圆网笼数量(只)
|
4 |
2 |
3 |
网槽结构
|
- |
压榨部
|
预压榨辊直径mm
|
Φ400/Φ550 |
吸水箱1只 |
预压榨数量(道)
|
3 |
无 |
压榨辊直径mm
|
Φ600/Φ550 |
无
|
主压榨数量（道） |
1 |
无 |
主压榨辊直径mm |
Φ600/Φ550 |
压榨数量（道） |
一正 |
说明 |
- |
|
烘干部 |
烘缸分组及数量
|
1-1-1 |
烘缸直径mm
|
Φ3000 |
烘缸传动形式
|
大齿轮
|
说明 |
在大烘缸下面设Φ550毫米托辊一只
|
汽罩部 |
- |
第一大缸带夹套汽罩 |
传动部 |
- |
总轴传动，功率100kW
|
附属设备 |
- |
七辊压光机，Φ1100毫米圆筒卷纸机
|
|
| |
| |
 |

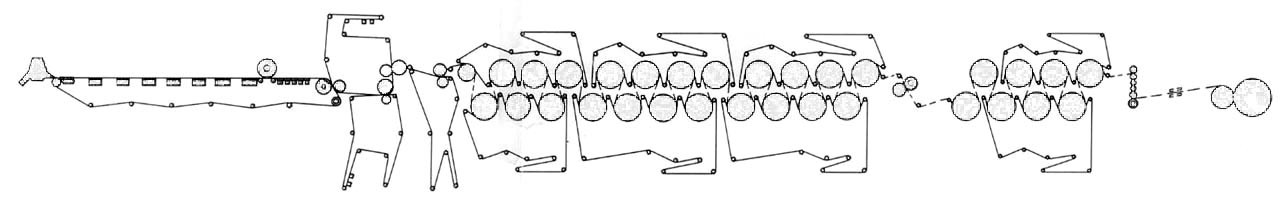

长网多缸复合压榨造纸机圈路图（三辊二压区） |
Configuration of multicylinder
fourdrinier combined press paper machine
|
(Three
Roll Bi-nip Press) |
| |
| |
 |

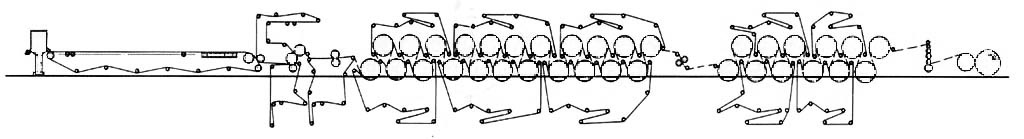

长网多缸复合压榨造纸机圈路图（四辊二压区） |
Configuration
of multicylinder fourdrinier combined press paper machine |
(Four
Roll Bi-nip Press) |
| |
 |

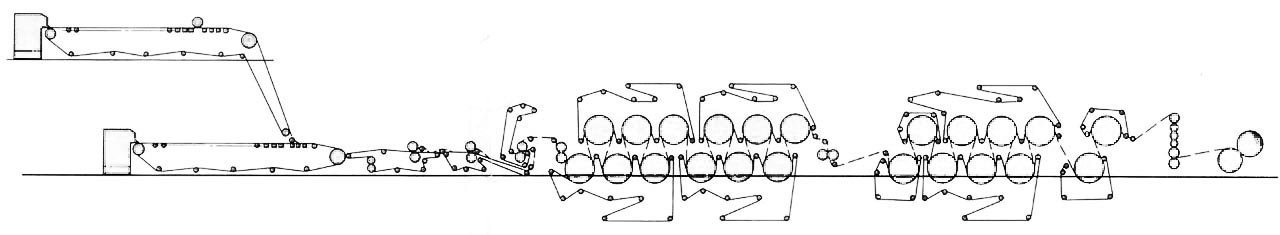

双长网多缸造纸机圈路图 |
Configuration
of Bi-fourdrinier Multi-Cylinder paper machine |
| |
| |
 |
圆网多缸造纸机圈路图 |
Configuration
of Multi-vat, Multi-Cylinder paper machine |
| |
| |
|
